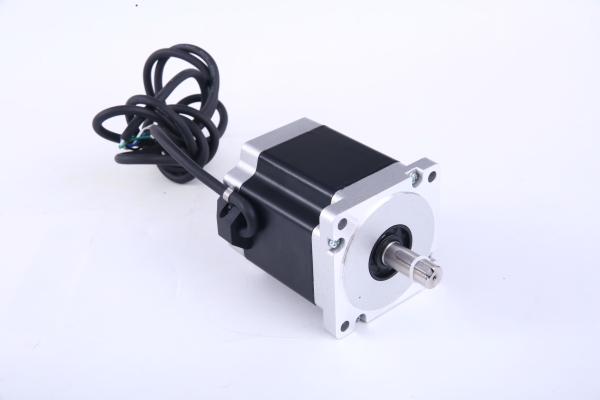

NEMA34 68MM 2Phase 6A 3.3NM 86BYGH68-6004 Hybrid Stepper Motor For
3d Printer
1. Product Description:
Stepping motor is an open-loop control element that converts
electrical pulse signals into angular displacement or linear
displacement. In the case of non-overload, the motor speed and stop
position only depend on the frequency and pulse number of the pulse
signal, and are not affected by the load change. When the stepper
driver receives a pulse signal, it drives the stepper motor The set
direction rotates at a fixed angle, called "step angle", and its
rotation runs step by step at a fixed angle. The angular
displacement can be controlled by controlling the number of pulses,
so as to achieve the purpose of accurate positioning; at the same
time, the speed and acceleration of the motor rotation can be
controlled by controlling the pulse frequency, so as to achieve the
purpose of speed regulation.
2. Specifications
| 86BYGH 2 PHASE STEPPER MOTOR |
| MODEL | STEP ANGLE | BODY LENGTH | CURRENT | RESISTANCE | INDUCTANCE | HOLDING TORQUE | POSITIONING TORQUE | MOMENT INERTIA | LEAD NO. | WEIGHT |
| | (.) | L(MM) | (A) | (Ω) | (mH) | (NM) | (NCM) | (GCM2) | | (KG) |
| 86BYGH68-3004 | 1.8 | 685 | 3 | 1.2 | 6.8 | 3.3 | 5.5 | 1000 | 4 | 2 |
| 86BYGH68-4206 | 1.8 | 68 | 4.2 | 0.6 | 1.6 | 3.3 | 5.5 | 1000 | 6 | 2 |
| 86BYGH68-6004 | 1.8 | 68 | 6 | 0.3 | 1.7 | 3.3 | 5.5 | 1000 | 4 | 2 |
86 BYGH
SERIES MOTOR.pdf
3. Application:
Computer controlled stepper motors are a type of motion-control positioning
system. They are typically digitally controlled as part of an open loop system for use in holding or positioning applications.
In the field of lasers and optics they are frequently used in precision positioning equipment such as linear
actuators, linear
stages, rotation
stages, goniometers, and mirror
mounts. Other uses are in packaging machinery, and positioning of valve pilot stages for fluid control systems.
Commercially, stepper motors are used in floppy disk
drives, flatbed
scanners, computer
printers, plotters, slot
machines, image
scanners, compact
disc drives, intelligent lighting, camera
lenses, CNC machines, and 3D
printers.
