Hollow - Shaft Nema 23 Stepper Motor High Torque Stepper Motor
Hybrid 0.55N.m-2.8Nm 4-wire
A hybrid stepper motor is a combination of the variable reluctance
and permanent magnet type motors. The rotor of a hybrid stepper
motor is axially magnetized like a permanent magnet stepper motor,
and the stator is electromagnetically energized like a variable
reluctance stepper motor. Both the stator and rotor are
multi-toothed.
1. Genaral Specification of stepper motor hybrid:
- Step Angle : 1.8°
- Step Angle Accuracy : ±5%(full step,no load)
- Resistance Accuracy : ±10%
- Inductance Accuracy : ±20%
- Temperature Rise : 80℃max
- Ambient Temperature : -20℃~+50℃
- Insulation Resistance : 100 MΩ Min. ,500VDC
- Dielectric Strength : 500VAC for 1minute
- Shaft Radial Play : 0.02Max. (450g-load)
- Shaft Axial Play : 0.08Max. (450g-load)
- Max. radial force : 28N (20mm from the flange)
- Max. axial force : 10N
2. Electrical Specification of nema23 stepper motor:
| Model | stepping angle | fuselage | current | resistance | inductangce | Static moment | Positioning torque | The monment of inertia | lead | weight |
| HJ57BYGH41-0604 | 1.8 | 41 | 0.6 | 10 | 22 | 0.55 | 2.5 | 150 | 4 | 0.47 |
| HJ57BYGH41-2004 | 1.8 | 41 | 2 | 1.3 | 2.8 | 0.55 | 2.5 | 150 | 4 | 0.47 |
| HJ57BYGH45-0624 | 1.8 | 45 | 0.62 | 12 | 26 | 0.8 | 2.8 | 190 | 4 | 0.52 |
| HJ57BYGH51-0806 | 1.8 | 51 | 0.8 | 6.8 | 9.2 | 0.62 | 3 | 230 | 6 | 0.59 |
| HJ57BYGH51-2804 | 1.8 | 51 | 2.8 | 0.85 | 2.1 | 0.9 | 3 | 230 | 4 | 0.59 |
| HJ57BYGH56-1506 | 1.8 | 56 | 1.5 | 3.2 | 5.5 | 0.9 | 3.5 | 280 | 6 | 0.68 |
| HJ57BYGH56-2504 | 1.8 | 56 | 2.5 | 1.3 | 4 | 1.1 | 3.5 | 280 | 4 | 0.68 |
| HJ57BYGH56-4204 | 1.8 | 56 | 4.2 | 0.4 | 1.3 | 1.1 | 3.5 | 280 | 4 | 0.68 |
| HJ57BYGH64-1004 | 1.8 | 64 | 1 | 7.5 | 20 | 1.4 | 5 | 380 | 4 | 0.85 |
| HJ57BYGH64-3004 | 1.8 | 64 | 3 | 1.3 | 2 | 1.4 | 5 | 380 | 4 | 0.85 |
| HJ57BYGH76-2804 | 1.8 | 76 | 2.8 | 1.2 | 4.3 | 1.8 | 6 | 440 | 4 | 1.05 |
| HJ57BYGH-4204 | 1.8 | 76 | 4.2 | 0.55 | 1.8 | 1.8 | 6 | 440 | 4 | 1.05 |
| HJ57BYGH80-4204 | 1.8 | 80 | 4.2 | 0.6 | 2.2 | 2 | 7 | 500 | 4 | 1.1 |
| HJ57BYGH83-4204 | 1.8 | 83 | 4.2 | 0.65 | 2.5 | 2.2 | 8 | 560 | 4 | 1.2 |
| HJ57BYGH100-4204 | 1.8 | 100 | 4.2 | 0.75 | 2.9 | 2.5 | 10 | 680 | 4 | 1.5 |
| HJ57BYGH112-3004 | 1.8 | 112 | 3 | 1.6 | 6.8 | 2.8 | 12 | 800 | 4 | 1.7 |
| HJ57BYGH112-4204 | 1.8 | 112 | 4.2 | 0.85 | 3.8 | 2.8 | 12 | 800 | 4 | 1.7 |
3.Applications of hybrid step motor:
- Used for robots stepper motor,
- Electronic automatic equipment stepping motor,
- Medical instrument stepping motor,
- Advertising instrument stepper motor,
- Lighting& audio equipment stepper motor,
- Printer stepper motor, textile machinery stepper motor.
- Cnc router stepper motor.
- cutting plotter stepping motor , cutting plotter Y axis motor
4.Company introduction:
Founded in 2009, Changzhou Hejie Motors Co., Ltd. is a professional
manufacturer and exporter that is concerned
with the design, development and production and sales of motors. We
are located in Changzhou, Jiangsu Province, with convenient
transportation access.Our company has always been committed to the
design and manufacturing of the motors for over ten years , and now
has a number of invention patents and utility model patents. Our
company mainly engages in research and development of different
motors, including the series stepping motor, the series Brushless
DC motor, AC/DC servo motor. All of our products are greatly
appreciated in a variety of
different markets throughout the country, and even exports to more
than ten foreign countries and regions.
Our products have passed CE and ROHS certification, and the company
has passed ISO9001 total quality management system
certification.The products are widely applied to carved machine,
embroidery machine, industrial robots, robots, unmanned aerial
vehicle (uav), CNC machine tools, digital printing, computer flat
knitting machine, 3 d printing, packaging machinery, industrial
printers, medical equipment, new energy vehicles and other
automation control and automation system equipment.

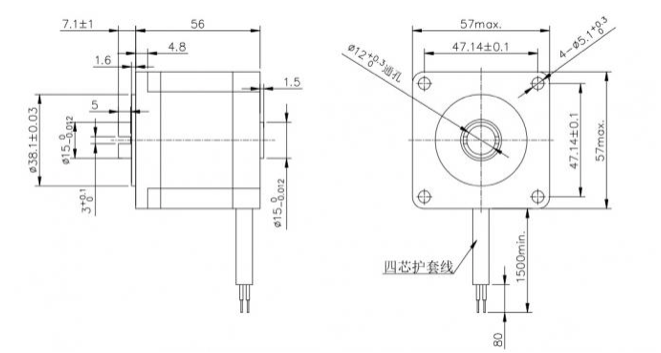

Dimensions of nema23 stepper motor: (Unit=mm)
