NEMA 42 11NM-28NM 1.8DEGREE HYBRID STEPPER MOTOR 110BYGH SERIES
Our Company offers three major series of products:
- Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor.
- We are always continues develop new type models.
- We are also have several joint venture companies who specialized in
the production of AC servo motor, PM stepper motors, Spindle motor
and Motor drivers.
What is a Hybrid Stepper Motor?
A hybrid stepper motor is a combination of the variable reluctance
and permanent magnet type motors. The rotor of a hybrid stepper
motor is axially magnetized like a permanent magnet stepper motor,
and the stator is electromagnetically energized like a variable
reluctance stepper motor. Both the stator and rotor are
multi-toothed.
A hybrid stepper motor has an axially magnetized rotor, meaning one
end is magnetized as a north pole, and the other end a south pole.
Toothed rotor cups are placed on each end of the magnet, and the
cups are offset by half of a tooth pitch.
1. Genaral Specification:
| Item | Specification |
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5%(full step,no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 820VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 220N (20mm from the flange) |
| Max. axial force | 60N |
2. Electrical Specification:
| 110BYGH MOTOR |
| MODEL | STEP ANGLE | BODY LENGTH | CURRENT | RESISTANCE | INDUCTANCE | HOLDING TORQUE | POSITIONING TORQUE | MOMENT INERTIA | LEAD NO. | WEIGHT |
| | (.) | L(MM) | (A) | (Ω) | (mH) | (NM) | (NCM) | (GCM2) | | (KG) |
| 110BYGH100-5504 | 1.8 | 100 | 5.5 | 0.7 | 9.8 | 11 | 30 | 5500 | 4 | 5 |
| 110BYGH115-6004 | 1.8 | 115 | 6 | 0.37 | 4.9 | 16 | 40 | 7200 | 4 | 6 |
| 110BYGH150-6504 | 1.8 | 150 | 6.5 | 0.75 | 11 | 21 | 59 | 10900 | 4 | 8.4 |
| 110BYGH200-8004 | 1.8 | 200 | 8 | 0.7 | 12 | 28 | 75 | 16200 | 4 | 13 |

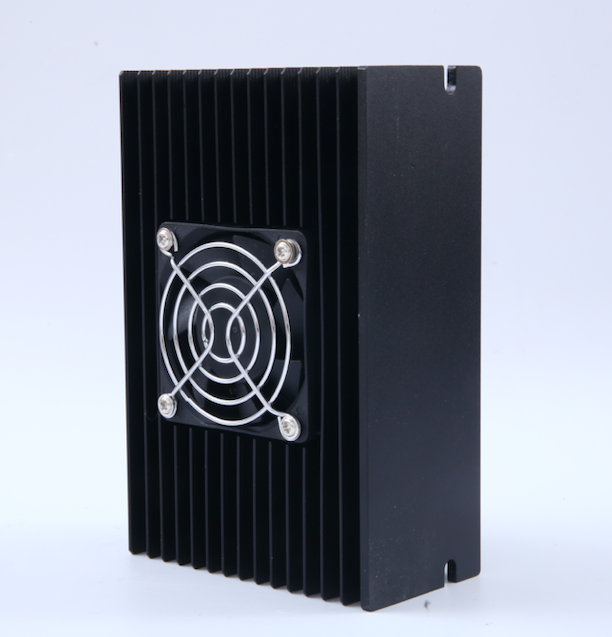

We are set motor and drive production as one of the manufacturers,
while providing motor, we also provide the corresponding model of
drive products, and have technical support.
3. Company introduction:
Founded in 2009, Changzhou Hejie Motors Co., Ltd. is a professional
manufacturer and exporter that is concerned
with the design, development and production and sales of motors. We
are located in Changzhou, Jiangsu Province, with convenient
transportation access.Our company has always been committed to the
design and manufacturing of the motors for over ten years , and now
has a number of invention patents and utility model patents. Our
company mainly engages in research and development of different
motors, including the series stepping motor, the series Brushless
DC motor, AC/DC servo motor. All of our products are greatly
appreciated in a variety of
different markets throughout the country, and even exports to more
than ten foreign countries and regions.
Our products have passed CE and ROHS certification, and the company
has passed ISO9001 total quality management system
certification.The products are widely applied to carved machine,
embroidery machine, industrial robots, robots, unmanned aerial
vehicle (uav), CNC machine tools, digital printing, computer flat
knitting machine, 3 d printing, packaging machinery, industrial
printers, medical equipment, new energy vehicles and other
automation control and automation system equipment.
Production equipment:
4.Related Qualification Certificate:
5. FAQ
Q1: Are you manufacturer ?
A1: Yes, we are the manufacturer of gear motor and planetary gearbox.
Q2 : What specifications we need before you place an order?
A2 : Rated torque, Rated speed, IP Grade, mounting dimensions.
Q3 : What is the price ?
A3 : Price always depends on quantity, we offer range pricing
Q4 : Is it customized ?
A4 : Yes, different clients have different requirements, so we customize for you. .
