CE CNC 1.8 Degree 1.8Nm 76mm Hybrid Nema 23 Stepper Motor with
Competitive Price
Stepping motor as an executive component, is one of the key
products of mechatronics, widely used in a variety of automatic
control systems. With the development of microelectronics and
computer technology, the demand of stepper motor is increasing day
by day, and it has been applied in various fields of national
economy.
Stepper motor is an actuator that converts electrical pulse into
angular displacement. When the stepper driver receives a pulse
signal, it drives the stepper motor to rotate at a fixed Angle
(called the "step Angle") in the set direction, and its rotation is
carried out step by step at a fixed Angle. The angular displacement
can be controlled by controlling the number of pulses so as to
achieve the purpose of accurate positioning. At the same time, the
speed and acceleration of the motor can be controlled by
controlling the pulse frequency, so as to achieve the purpose of
speed regulation. Stepper motor can be used as a special motor for
control. It is widely used in all kinds of open loop control
because it has no accumulated error (accuracy is 100%).
Product Description of hybrid stepper motor:
Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g
Load)
End Play ------------------------------------ 0.08mm MAX. (450g
Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N
Electrical specifications of 2phase step motor:
| Model | step angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | Positioning torque | The monment of inertia | lead | weight |
| ( °) | (L)mm | A | R | mH | N.m | No. | g.cm | g.cm | Kg |
| HJ57BYGH41-0604 | 1.8 | 41 | 0.6 | 10 | 22 | 0.55 | 2.5 | 150 | 4 | 0.47 |
| HJ57BYGH41-2004 | 1.8 | 41 | 2 | 1.3 | 2.8 | 0.55 | 2.5 | 150 | 4 | 0.47 |
| HJ57BYGH45-0624 | 1.8 | 45 | 0.62 | 12 | 26 | 0.8 | 2.8 | 190 | 4 | 0.52 |
| HJ57BYGH51-0806 | 1.8 | 51 | 0.8 | 6.8 | 9.2 | 0.62 | 3 | 230 | 6 | 0.59 |
| HJ57BYGH51-2804 | 1.8 | 51 | 2.8 | 0.85 | 2.1 | 0.9 | 3 | 230 | 4 | 0.59 |
| HJ57BYGH56-1506 | 1.8 | 56 | 1.5 | 3.2 | 5.5 | 0.9 | 3.5 | 280 | 6 | 0.68 |
| HJ57BYGH56-2504 | 1.8 | 56 | 2.5 | 1.3 | 4 | 1.1 | 3.5 | 280 | 4 | 0.68 |
| HJ57BYGH56-4204 | 1.8 | 56 | 4.2 | 0.4 | 1.3 | 1.1 | 3.5 | 280 | 4 | 0.68 |
| HJ57BYGH64-1004 | 1.8 | 64 | 1 | 7.5 | 20 | 1.4 | 5 | 380 | 4 | 0.85 |
| HJ57BYGH64-3004 | 1.8 | 64 | 3 | 1.3 | 2 | 1.4 | 5 | 380 | 4 | 0.85 |
| HJ57BYGH76-2804 | 1.8 | 76 | 2.8 | 1.2 | 4.3 | 1.8 | 6 | 440 | 4 | 1.05 |
| HJ57BYGH-4204 | 1.8 | 76 | 4.2 | 0.55 | 1.8 | 1.8 | 6 | 440 | 4 | 1.05 |
| HJ57BYGH80-4204 | 1.8 | 80 | 4.2 | 0.6 | 2.2 | 2 | 7 | 500 | 4 | 1.1 |
| HJ57BYGH83-4204 | 1.8 | 83 | 4.2 | 0.65 | 2.5 | 2.2 | 8 | 560 | 4 | 1.2 |
| HJ57BYGH100-4204 | 1.8 | 100 | 4.2 | 0.75 | 2.9 | 2.5 | 10 | 680 | 4 | 1.5 |
| HJ57BYGH112-3004 | 1.8 | 112 | 3 | 1.6 | 6.8 | 2.8 | 12 | 800 | 4 | 1.7 |
| HJ57BYGH112-4204 | 1.8 | 112 | 4.2 | 0.85 | 3.8 | 2.8 | 12 | 800 | 4 | 1.7 |
We are set motor and drive production as one of the manufacturers,
while providing motor, we also provide the corresponding model of
drive products, and have technical support.
Company introduction
Founded in 2009, Changzhou Hejie Motors Co., Ltd. is a professional
manufacturer and exporter that is concerned
with the design, development and production and sales of motors. We
are located in Changzhou, Jiangsu Province, with convenient
transportation access.Our company has always been committed to the
design and manufacturing of the motors for over ten years , and now
has a number of invention patents and utility model patents. Our
company mainly engages in research and development of different
motors, including the series stepping motor, the series Brushless
DC motor, AC/DC servo motor. All of our products are greatly
appreciated in a variety of
different markets throughout the country, and even exports to more
than ten foreign countries and regions.
Our products have passed CE and ROHS certification, and the company
has passed ISO9001 total quality management system
certification.The products are widely applied to carved machine,
embroidery machine, industrial robots, robots, unmanned aerial
vehicle (uav), CNC machine tools, digital printing, computer flat
knitting machine, 3 d printing, packaging machinery, industrial
printers, medical equipment, new energy vehicles and other
automation control and automation system equipment.

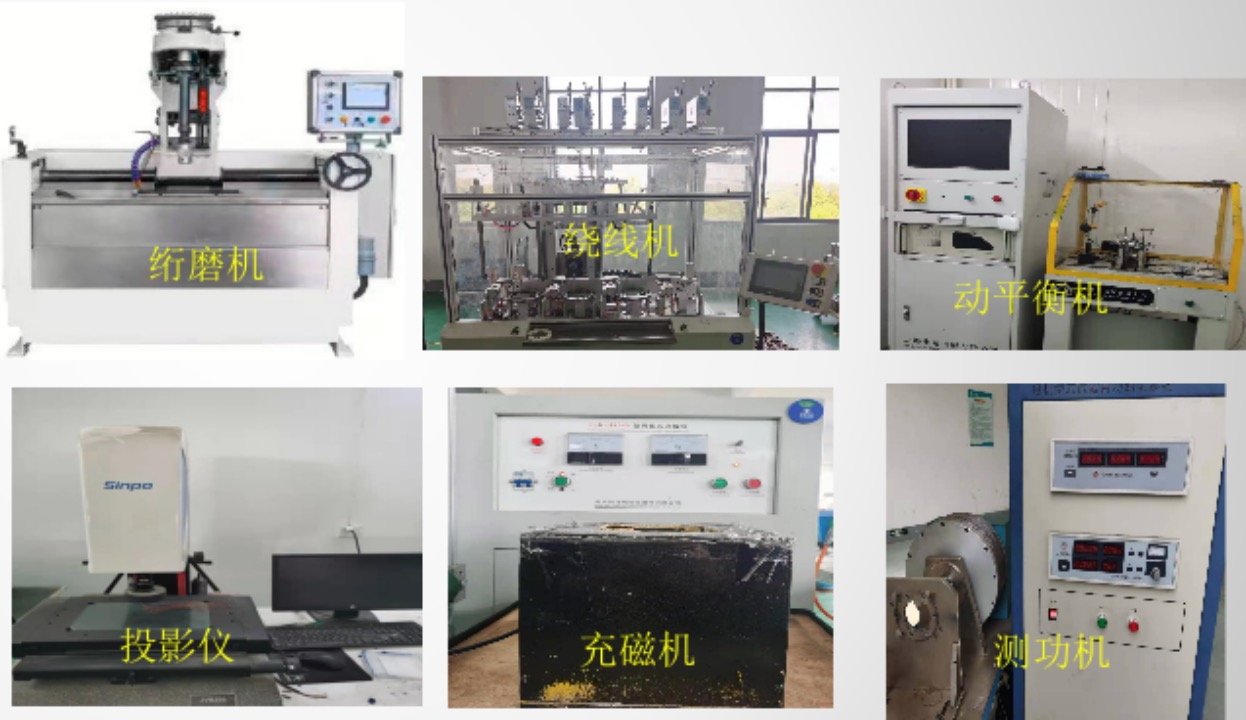

Production equipment:
