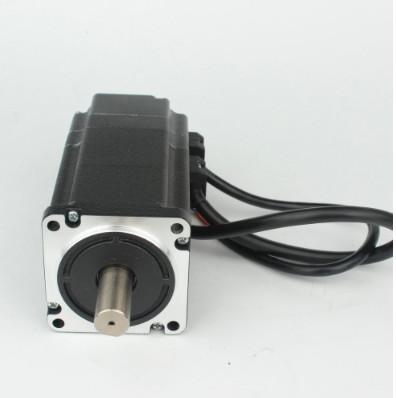

Nema24 Electric Bldc Brushless Dc Motor 48v For CNC Machine

1.Motor technical parameter:

* Winding type: Star

* Hall effect angle: 120 degree electrical angle

* Shaft run out: 0.025mm

* Radial play: 0.02mm@450g

* End play: 0.08mm@450g

* Max.radial force: 151N@20mm form the flange

* Max.axial force: 45N

* Insulation class: Class B

* Dielectric strength: 500VDC for one minute

* Insulation resistance: 100MΩ Min.,500VDC

* CE and ROHS certified

2.Electrical Specification:

3.Our service:

We do also manufacture other products,such as nema8,nema11,nema14,nema16,nema17,nema23,nema24,nema34,nema42,nema52 stepper motor;nema11,nema17,nema23,nema24,nema34 stepper motor with gearbox.

linear stepper motor,closed loop stepper motor,stepper motor with brake,stepper motor sriver;

42mm,57mm,60mm,80mm,86mm,110mm,130mm brushless dc motor;

bldc motor with gearbox,bldc motor driver;

brush dc motor,spindle motor,ac servo motor kit,couplings,pulley,power supply and so on.

4.FAQ:

Q1:Are you manufacturer ?

A1:Yes, we are the manufacturer of gear motor and planetary gearbox.

Q2 : What specifications we need before you place an order?

A2 : Rated torque, Rated speed, IP Grade, mounting dimensions.

Q3 : What is the price ?

A3 : Price always depends on quantity, we offer range pricing

Q4 : Is it customized ?

A4 : Yes, different clients have different requirements, so we customize for you. .

Founded in 2009, Changzhou Hejie Motors Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production and sales of motors. We are located in Changzhou, Jiangsu Province, with convenient transportation access.Our company has always been committed to the design and manufacturing of the motors for over ten years , and now has a number of invention patents and utility model patents. Our company mainly engages in research and development of different motors, including the series stepping motor, the series Brushless DC motor, AC/DC servo motor. All of our products are greatly appreciated in a variety of different markets throughout the country, and even exports to more than ten foreign countries and regions.

Our products have passed CE and ROHS certification, and the company has passed ISO9001 total quality management system certification.The products are widely applied to carved machine, embroidery machine, industrial robots, robots, unmanned aerial vehicle (uav), CNC machine tools, digital printing, computer flat knitting machine, 3 d printing, packaging machinery, industrial printers, medical equipment, new energy vehicles and other automation control and automation system equipment.
