24V 204w 60mm BLDC Brushless Planetary Gear Motor
Product Description of Brushless DC Gear Motor:
- Brushless gear motor , high efficiency and energy saving
- Speed reduction ratio is optional
- The external scheme can be used in bulk sorting and transportation
- The drum motor is customized for the conveying line
- With brushless gear motor, 50 kg load can be easily driven
- Integrated photoelectric input and output ports, easier field
wiring
- 15 internal rotating speeds and 7 external rotating speeds
Advantages of BLDC Motors:
A BLDC motor with three coils on the stator will have six
electrical wires (two to each coil) extending from these coils. In
most implementations three of these wires will be connected
internally, with the three remaining wires extending from the motor
body (in contrast to the two wires extending from the brushed motor
described earlier). Wiring in the BLDC motor case is more
complicated than simply connecting the power cell’s positive and
negative terminals; we will look more closely at how these motors
work in the second session of this series. Below, we conclude by
looking at the advantages of by BLDC motors.
Genaral Specification of electric motor:
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm＠450g |
| End play | 0.08mm＠450g |
| Max.radial force | 75N ＠20mm form the flange |
| Max.axial force | 15N |
| Insulation class | Class B |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩ Min.,500VDC |
| Specification | Unit | HJ60BLS02-02PLF64ED |
| Number Of Phase | Phase | 3 |
| Number Of Poles | Poles | 8 |
| Rated Voltage | VDC | 24 |
| Rated Speed | Rpm | 3000 |
| Rated Torque | N.m | 0.65 |
| Rated Power | W | 204 |
| Back E.M.F | V/Krpm | 6 |
| Torque Constant | N.m/A | 0.06 |
Gearbox Electrical Specification:
| Reduction ratio | 3.6 | 4.3 | 13 | 15 | 18 | 23 | 47 | 55 | 65 | 77 | 96 | 121 | 154 | 187 | 220 | 260 | 307 | 409 | 514 | 645 |
| Number of geartrains | 1 | 2 | 3 | 4 |
| Transmission efficiency | 90% | 81% | 73% | 66% |
| Rated tolerance torque | 3 N.m | 12 N.m | 24 N.m | 30 N.m |
| Max momentary tolerance torque | 9 N.m | 36 N.m | 72 N.m | 90 N.m |
| Max radial load(12mm form flange) | ≤250N |
|
| Max shaft axial load | ≤100N |
| L2 length(mm) | 38 | 49.5 | 61 | 72 |
Company introduction:

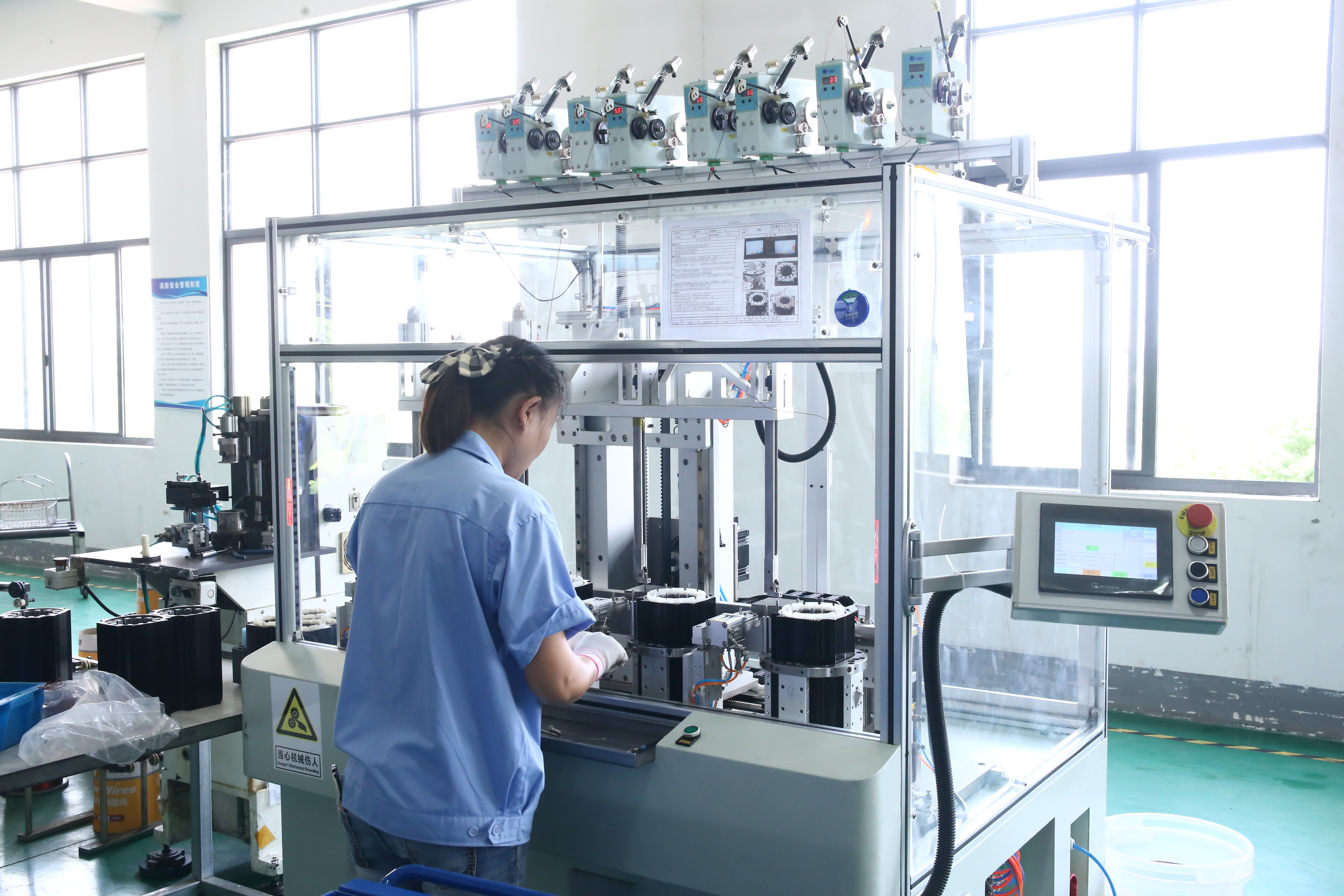

Founded in 2009, Changzhou Hejie Motors Co., Ltd. is a professional
manufacturer and exporter that is concerned
with the design, development and production and sales of motors. We
are located in Changzhou, Jiangsu Province, with convenient
transportation access.Our company has always been committed to the
design and manufacturing of the motors for over ten years , and now
has a number of invention patents and utility model patents. Our
company mainly engages in research and development of different
motors, including the series stepping motor, the series Brushless
DC motor, AC/DC servo motor. All of our products are greatly
appreciated in a variety of
different markets throughout the country, and even exports to more
than ten foreign countries and regions.
Our products have passed CE and ROHS certification, and the company
has passed ISO9001 total quality management system
certification.The products are widely applied to carved machine,
embroidery machine, industrial robots, robots, unmanned aerial
vehicle (uav), CNC machine tools, digital printing, computer flat
knitting machine, 3 d printing, packaging machinery, industrial
printers, medical equipment, new energy vehicles and other
automation control and automation system equipment.
Related Qualification Certificate:
FAQ:
Q:Where is your factory?
A:Our factory is located in Changzhou only one hour from Shanghai
by high –speed railway.
Q:How to choose the suitable stepper motor?
A:There are several important points Size and length of the stepper
motor Holding torque Step angle voltage Current etc. After confirm
some of them then told us We can help you to choose the suitable
stepper motor Or you can sent us the model you are using We can
help you to find the suitable stepper motor.
Q:When can I receive the drawings of the stepper motor?
A:We will provide the drawings of the stepper motor after you place
the order.
Q:How long is the warranty time?
A:12 months And we provide life-long technical service and after
sale service.
Q:How can we know the product quality?
A:We suggest you to order a sample Also You can send us email for
detail photos for checking if you cannot get enough information in
the product page.
