1.8° 1.33A 2.8v 2.6kg.cm Nema17 stepper motor with screw lead

The linear stepper motor almost exclusively employs a hybrid design, with two main parts—a base (also referred to as a platen) and a slider (also referred to as a forcer). Unlike other linear motor designs, in a linear stepper motor, the platen is a passive component—a steel (or stainless steel) plate with slots milled into it. The forcer contains laminations with slotted teeth, motor windings, and a permanent magnet. The teeth of the forcer concentrate the magnetic flux that is created when current is applied to the coils. The forcer teeth are also staggered in relation to the platen teeth—typically by ¼ tooth pitch—to ensure that constant attraction is maintained and that the next set of teeth will come into alignment as current is switched in the coils. For each full step of the motor, the forcer moves ¼ tooth pitch.

1.Genaral Specification of hybrid stepper motor:

2.Electrical Specification of stepper morors:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
	( °)	(L)mm	A	Ω	mH	N.m	No.	g.cm	g.cm²	Kg
HJ42HS25-0404	1.8	25	0.4	24	36	1.8	4	75	20	0.15
HJ42HS34-1334	1.8	34	1.33	2.1	2.5	2.2	4	120	34	0.22
HJ42HS40-1684	1.8	40	1.68	1.65	3.2	3.6	4	150	54	0.28
HJ42HS48-1684	1.8	48	1.68	1.65	2.8	4.4	4	260	68	0.35
HJ42HS60-1004	1.8	60	1.0	8	13	7.5	4	280	102	0.5

3.Screw rod Specification:

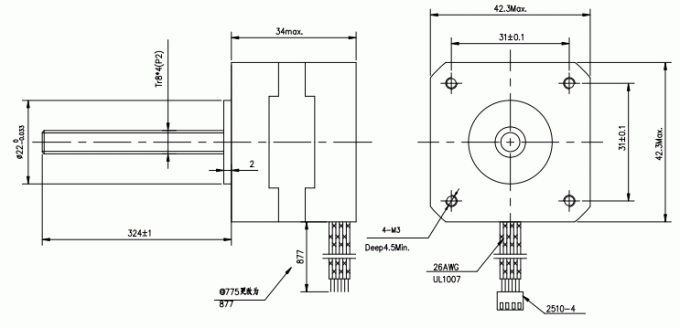

4.Drawing of JK42HS34 stepper motor:

5.Advantages of hybrid Step Motor:

The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

6.Applications of electric motor:

• As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
• They are used in numeric control of machine tools.
• Used in tape drives, floppy disc drives, printers and electric watches.
• The stepper motor also use in X-Y plotter and robotics.
• It has wide application in textile industries and integrated circuit fabrications.
• The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
• These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
• Stepper motors of microwatts are used in the wrist watches.
• In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
