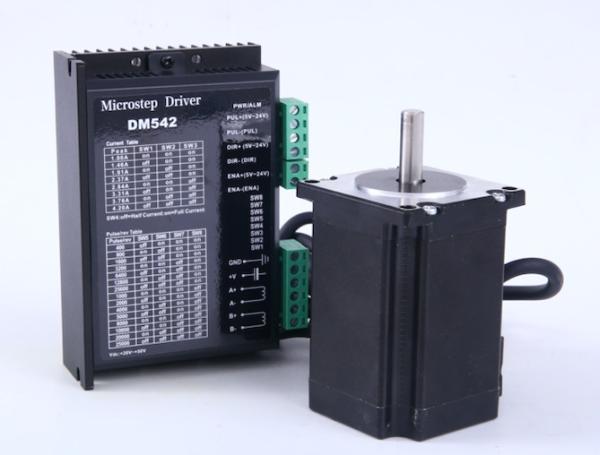

76mm 3A dual shaft with 8 wire unipolar 57byg mask machine motor
nema 23 stepper motor 57hs76
1.Product Specification:
Widely used in ATM machines,inkjet printers,cutting plotters,photo
machines,spraying equipment,medical instruments and
equipment,computer peripherals and mass storage equipment,precision
instruments,industrial control systems,office automation,robotics
and other fields,especially suitable for stable operation,low
noise,applications with fast response,long life and high output
torque.
| Step Angel | 1.8 ° |
| Current | 3.0 a |
| Resistance | 1 Ω |
| Holding Torque | 1.8 N.m |
| Lenth | 76 mm |
| Weight | 1050 g |
2.Product Specification:
| Model No. | Step Angle | Motor Length | | | | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| Current | Resistance | Inductance |
| /Phase | /Phase | /Phase |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm | Kg |
| HJ57HS41-1006 | 1.8 | 41 | 1 | 7.1 | 8 | 0.48 | 6 | 250 | 150 | 0.47 |
| HJ57HS41-2008 | 1.8 | 41 | 2 | 1.4 | 1.4 | 0.39 | 8 | 250 | 150 | 0.47 |
| HJ57HS41-2804 | 1.8 | 41 | 2.8 | 0.7 | 1.4 | 0.55 | 4 | 250 | 150 | 0.47 |
| HJ57HS51-1006 | 1.8 | 51 | 1 | 6.6 | 8.2 | 0.72 | 6 | 300 | 230 | 0.59 |
| HJ57HS51-2008 | 1.8 | 51 | 2 | 1.8 | 2.7 | 0.9 | 8 | 300 | 230 | 0.59 |
| HJ57HS51-2804 | 1.8 | 51 | 2.8 | 0.83 | 2.2 | 1.01 | 4 | 300 | 230 | 0.59 |
| HJ57HS56-2006 | 1.8 | 56 | 2 | 1.8 | 2.5 | 0.9 | 6 | 350 | 280 | 0.68 |
| HJ57HS56-2108 | 1.8 | 56 | 2.1 | 1.8 | 2.5 | 1 | 8 | 350 | 280 | 0.68 |
| HJ57HS56-2804 | 1.8 | 56 | 2.8 | 0.9 | 2.5 | 1.2 | 4 | 350 | 280 | 0.68 |
| HJ57HS64-2804 | 1.8 | 64 | 2.8 | 0.8 | 2.3 | 1 | 4 | 400 | 300 | 0.75 |
| HJ57HS76-2804 | 1.8 | 76 | 2.8 | 1.1 | 3.6 | 1.89 | 4 | 600 | 440 | 1.1 |
| HJ57HS76-3006 | 1.8 | 76 | 3 | 1 | 1.6 | 1.35 | 6 | 600 | 440 | 1.1 |
| HJ57HS76-3008 | 1.8 | 76 | 3 | 1 | 1.8 | 1.5 | 8 | 600 | 440 | 1.1 |
| HJ57HS82-3004 | 1.8 | 82 | 3 | 1.2 | 4 | 2.1 | 4 | 1000 | 600 | 1.2 |
| HJ57HS82-4008 | 1.8 | 82 | 4 | 0.8 | 1.8 | 2 | 8 | 1000 | 600 | 1.2 |
| HJ57HS82-4204 | 1.8 | 82 | 4.2 | 0.7 | 2.5 | 2.2 | 4 | 1000 | 600 | 1.2 |
| HJ57HS100-4204 | 1.8 | 100 | 4.2 | 0.75 | 3 | 3 | 4 | 1100 | 700 | 1.3 |
| HJ57HS112-3004 | 1.8 | 112 | 3 | 1.6 | 7.5 | 3 | 4 | 1200 | 800 | 1.4 |
| HJ57HS112-4204 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 3.1 | 4 | 1200 | 800 | 1.4 |
3.Mask motor drawing:
(1). The angle of rotation of the stepper motor is proportional to
the number of pulses;
(2). The motor has the maximum torque when it stops.
(3). Since the accuracy of each step is 3%-5%, and the error of one
step is not accumulated to the next step, there is better
positional accuracy and repeatability of motion;
(4). Excellent start and stop and reverse response;
(5). Since there is no brush, the reliability is high, so the life
of the motor depends only on the life of the bearing;
(6). The response of the motor is only determined by the digital
input pulse, so open loop control can be used, which makes the
structure of the motor relatively simple and the control cost is
low;
(7). It is also possible to connect the load directly to the
rotating shaft of the motor with a very low synchronous rotation;
(8). Because the speed is proportional to the pulse frequency,
there is a wide range of speeds.
