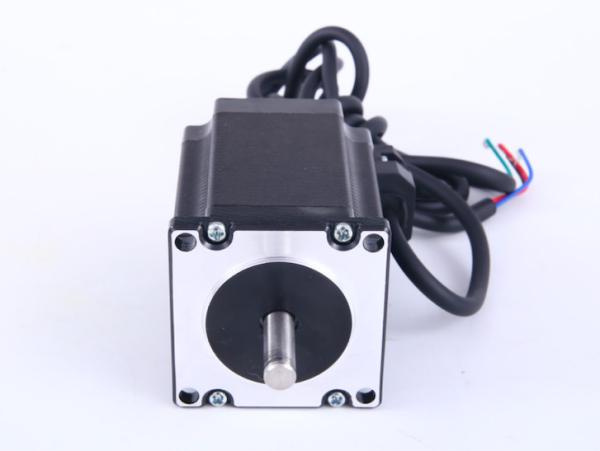

Nema34 High Torque Stepper Motor 5.2mH Dia 14mm 5*5*25mm

    Buy cheap Nema34 High Torque Stepper Motor 5.2mH Dia 14mm 5*5*25mm from wholesalers

    Buy cheap Nema34 High Torque Stepper Motor 5.2mH Dia 14mm 5*5*25mm from wholesalers
    • Buy cheap Nema34 High Torque Stepper Motor 5.2mH Dia 14mm 5*5*25mm from wholesalers
    • Buy cheap Nema34 High Torque Stepper Motor 5.2mH Dia 14mm 5*5*25mm from wholesalers

    Nema34 High Torque Stepper Motor 5.2mH Dia 14mm 5*5*25mm

    Ask Lasest Price
    Brand Name : HEJIE
    Certification : CE,ISO9001,ROHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000 pieces per day
    Delivery Time : For samples , 7-15 days / For batch , 15-25days
    • Product Details
    • Company Profile

    Nema34 High Torque Stepper Motor 5.2mH Dia 14mm 5*5*25mm

    Nema 23 76mm 3A unipolar stepper motor high torque series 6 wire for mask machine fittings


    1.Product Specification:

    • Phase Inductance1.6mH
      Resistance1
      Installment pitch of holes69.6mm
      face to face dimension86mm
      axis length37mm
      shaft diameter14mm
      Body length150mm
      mode of connectionRed A+ green A- Yel B+ Blue B-
      shaft key5*5*25mm
      wire length60CM
      Product Keywordsnema 23,motor shaft
    • 2.Advantages of stepper motors:

    • (1). The angle of rotation of the stepper motor is proportional to the number of pulses;

    (2). The motor has the maximum torque when it stops.
    (3). Since the accuracy of each step is 3%-5%, and the error of one step is not accumulated to the next step, there is better positional accuracy and repeatability of motion;
    (4). Excellent start and stop and reverse response;
    (5). Since there is no brush, the reliability is high, so the life of the motor depends only on the life of the bearing;
    (6). The response of the motor is only determined by the digital input pulse, so open loop control can be used, which makes the structure of the motor relatively simple and the control cost is low;
    (7). It is also possible to connect the load directly to the rotating shaft of the motor with a very low synchronous rotation;
    (8). Because the speed is proportional to the pulse frequency, there is a wide range of speeds.

    3.Product Specification:

    Model No.Step AngleMotor LengthHolding Torque# of LeadsDetent TorqueRotor InertiaMass
    CurrentResistanceInductance
    /Phase/Phase/Phase
    ( °)(L)mmAΩmHN.mNo.g.cmg.cmKg
    HJ57HS41-10061.84117.180.4862501500.47
    HJ57HS41-20081.84121.41.40.3982501500.47
    HJ57HS41-28041.8412.80.71.40.5542501500.47
    HJ57HS51-10061.85116.68.20.7263002300.59
    HJ57HS51-20081.85121.82.70.983002300.59
    HJ57HS51-28041.8512.80.832.21.0143002300.59
    HJ57HS56-20061.85621.82.50.963502800.68
    HJ57HS56-21081.8562.11.82.5183502800.68
    HJ57HS56-28041.8562.80.92.51.243502800.68
    HJ57HS64-28041.8642.80.82.3144003000.75
    HJ57HS76-28041.8762.81.13.61.8946004401.1
    HJ57HS76-30061.876311.61.3566004401.1
    HJ57HS76-30081.876311.81.586004401.1
    HJ57HS82-30041.88231.242.1410006001.2
    HJ57HS82-40081.88240.81.82810006001.2
    HJ57HS82-42041.8824.20.72.52.2410006001.2
    HJ57HS100-42041.81004.20.7533411007001.3
    HJ57HS112-30041.811231.67.53412008001.4
    HJ57HS112-42041.81124.20.93.83.1412008001.4

    4.Mask motor drawing:



    5.Company introduction:

    Founded in 2009, Changzhou Hejie Motors Co., Ltd. is a professional manufacturer and exporter that is concerned
    with the design, development and production and sales of motors. We are located in Changzhou, Jiangsu Province, with convenient transportation access.Our company has always been committed to the design and manufacturing of the motors for over ten years , and now has a number of invention patents and utility model patents. Our company mainly engages in research and development of different motors, including the series stepping motor, the series Brushless DC motor, AC/DC servo motor. All of our products are greatly appreciated in a variety of
    different markets throughout the country, and even exports to more than ten foreign countries and regions.
    Our products have passed CE and ROHS certification, and the company has passed ISO9001 total quality management system certification.The products are widely applied to carved machine, embroidery machine, industrial robots, robots, unmanned aerial vehicle (uav), CNC machine tools, digital printing, computer flat knitting machine, 3 d printing, packaging machinery, industrial printers, medical equipment, new energy vehicles and other automation control and automation system equipment.


    Related Qualification Certificate:



    6.FAQ

    Q1:Are you manufacturer ?

    A1:Yes, we are the manufacturer of gear motor and planetary gearbox.

    Q2 : What specifications we need before you place an order?

    A2 : Rated torque, Rated speed, IP Grade, mounting dimensions.

    Q3 : What is the price ?

    A3 : Price always depends on quantity, we offer range pricing

    Q4 : Is it customized ?

    A4 : Yes, different clients have different requirements, so we customize for you. .
