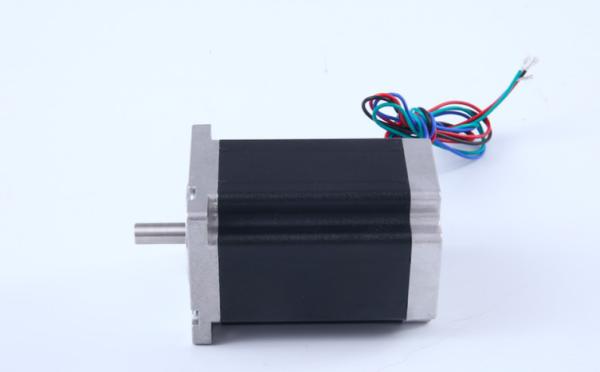

Nema 34 8N.m 6A Easy Servo Motor for Sewing Machine
1.Product Features:
(1). Position error correction and never lose steps
(2). Quick response and perfect acceleration, high torque at high
speed
(3). Automatic current adjustment based on load, lower temperature
rising
(4). Over-current, over-voltage and position ultra difference
protection function
(5). Pulse response frequency can reach 200KHZ
(6). 16 kinds microsteps choice, highest 51200 microsteps/rev.
(7). Drive nema 34 series 4.5N.m, 8N.m, 12N.m closed loop stepper
motor
(8). Voltage range:DC20V~80V, DC30V~110V
2.Product Specification:
| Model No. | 86HSE4N-BC38 | 86HSE8N-BC38 | 86HSE12N-BC38 |
| Step Angle | 1.8° | 1.8° | 1.8° |
| Current | 6.0A | 6.0A | 6.0A |
| Resistance | 0.45Ω ±10% | 0.45Ω ±10% | 0.45Ω ±10% |
| Inductance | 3.7mH±20% | 3.7mH±20% | 5.2mH±20% |
| Holding Torque | 4.5N.m | 8.0N.m | 12.0N.m |
| Motor Length | 82mm | 118mm | 156mm |
| Encoder Resolution | 1000 | 1000 | 1000 |
| Weight | 2.65kg | 4.0kg | 5.65kg |
(2). The motor has the maximum torque when it stops.
(3). Since the accuracy of each step is 3%-5%, and the error of one
step is not accumulated to the next step, there is better
positional accuracy and repeatability of motion;
(4). Excellent start and stop and reverse response;
(5). Since there is no brush, the reliability is high, so the life
of the motor depends only on the life of the bearing;
(6). The response of the motor is only determined by the digital
input pulse, so open loop control can be used, which makes the
structure of the motor relatively simple and the control cost is
low;
(7). It is also possible to connect the load directly to the
rotating shaft of the motor with a very low synchronous rotation;
(8). Because the speed is proportional to the pulse frequency,
there is a wide range of speeds.
4.Company introduction:
Founded in 2009, Changzhou Hejie Motors Co., Ltd. is a professional
manufacturer and exporter that is concerned
with the design, development and production and sales of motors. We
are located in Changzhou, Jiangsu Province, with convenient
transportation access.Our company has always been committed to the
design and manufacturing of the motors for over ten years , and now
has a number of invention patents and utility model patents. Our
company mainly engages in research and development of different
motors, including the series stepping motor, the series Brushless
DC motor, AC/DC servo motor. All of our products are greatly
appreciated in a variety of
different markets throughout the country, and even exports to more
than ten foreign countries and regions.
Our products have passed CE and ROHS certification, and the company
has passed ISO9001 total quality management system
certification.The products are widely applied to carved machine,
embroidery machine, industrial robots, robots, unmanned aerial
vehicle (uav), CNC machine tools, digital printing, computer flat
knitting machine, 3 d printing, packaging machinery, industrial
printers, medical equipment, new energy vehicles and other
automation control and automation system equipment.
Related Qualification Certificate:
5.FAQ
Q1:Are you manufacturer ?
A1:Yes, we are the manufacturer of gear motor and planetary gearbox.
Q2 : What specifications we need before you place an order?
A2 : Rated torque, Rated speed, IP Grade, mounting dimensions.
Q3 : What is the price ?
A3 : Price always depends on quantity, we offer range pricing
Q4 : Is it customized ?
A4 : Yes, different clients have different requirements, so we customize for you. .
