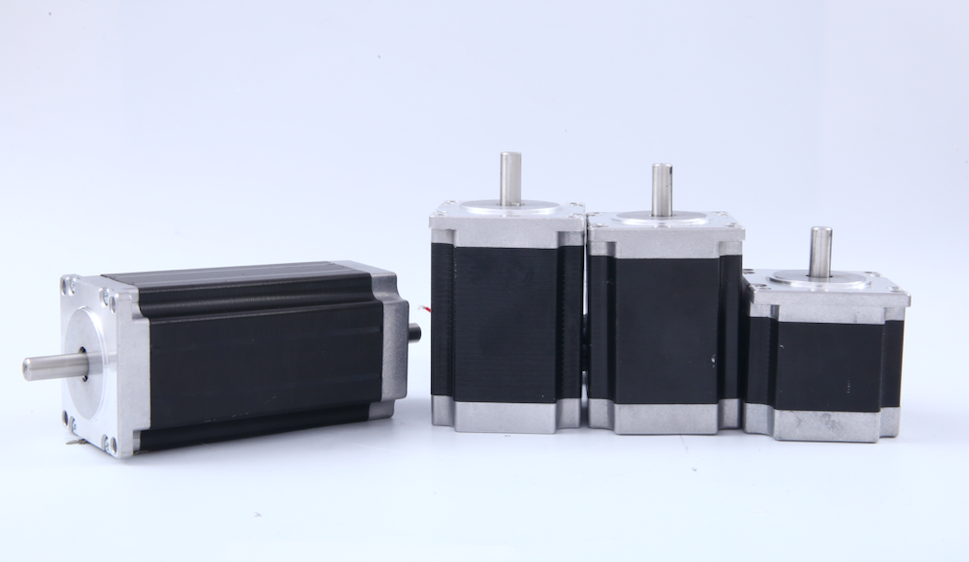

drive products, and have technical support.Hollow Shaft Stepper Motor Nema23 High Torque
Stepper Motor Hybrid 57BYG Nema 23 Stepper Motor , 2 Phase Stepper
Motor For X Y Axis Cutting Plotter
1.Electrical Specification of nema23 stepper motor:
| Model | stepping angle | fuselage | current | resistance | inductangce | Static moment | Positioning torque | The monment of inertia | lead | weight |
| HJ57BYGH41-0604 | 1.8 | 41 | 0.6 | 10 | 22 | 0.55 | 2.5 | 150 | 4 | 0.47 |
| HJ57BYGH41-2004 | 1.8 | 41 | 2 | 1.3 | 2.8 | 0.55 | 2.5 | 150 | 4 | 0.47 |
| HJ57BYGH45-0624 | 1.8 | 45 | 0.62 | 12 | 26 | 0.8 | 2.8 | 190 | 4 | 0.52 |
| HJ57BYGH51-0806 | 1.8 | 51 | 0.8 | 6.8 | 9.2 | 0.62 | 3 | 230 | 6 | 0.59 |
| HJ57BYGH51-2804 | 1.8 | 51 | 2.8 | 0.85 | 2.1 | 0.9 | 3 | 230 | 4 | 0.59 |
| HJ57BYGH56-1506 | 1.8 | 56 | 1.5 | 3.2 | 5.5 | 0.9 | 3.5 | 280 | 6 | 0.68 |
| HJ57BYGH56-2504 | 1.8 | 56 | 2.5 | 1.3 | 4 | 1.1 | 3.5 | 280 | 4 | 0.68 |
| HJ57BYGH56-4204 | 1.8 | 56 | 4.2 | 0.4 | 1.3 | 1.1 | 3.5 | 280 | 4 | 0.68 |
| HJ57BYGH64-1004 | 1.8 | 64 | 1 | 7.5 | 20 | 1.4 | 5 | 380 | 4 | 0.85 |
| HJ57BYGH64-3004 | 1.8 | 64 | 3 | 1.3 | 2 | 1.4 | 5 | 380 | 4 | 0.85 |
| HJ57BYGH76-2804 | 1.8 | 76 | 2.8 | 1.2 | 4.3 | 1.8 | 6 | 440 | 4 | 1.05 |
| HJ57BYGH-4204 | 1.8 | 76 | 4.2 | 0.55 | 1.8 | 1.8 | 6 | 440 | 4 | 1.05 |
| HJ57BYGH80-4204 | 1.8 | 80 | 4.2 | 0.6 | 2.2 | 2 | 7 | 500 | 4 | 1.1 |
| HJ57BYGH83-4204 | 1.8 | 83 | 4.2 | 0.65 | 2.5 | 2.2 | 8 | 560 | 4 | 1.2 |
| HJ57BYGH100-4204 | 1.8 | 100 | 4.2 | 0.75 | 2.9 | 2.5 | 10 | 680 | 4 | 1.5 |
| HJ57BYGH112-3004 | 1.8 | 112 | 3 | 1.6 | 6.8 | 2.8 | 12 | 800 | 4 | 1.7 |
| HJ57BYGH112-4204 | 1.8 | 112 | 4.2 | 0.85 | 3.8 | 2.8 | 12 | 800 | 4 | 1.7 |
2.Genaral Specification of 2phase stepper motor:
Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g
Load)
End Play ------------------------------------ 0.08mm MAX. (450g
Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N
