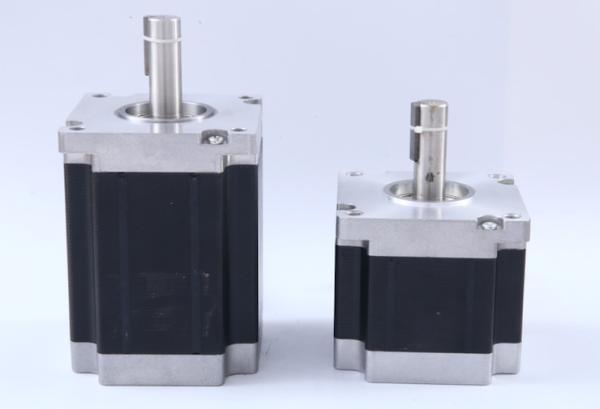

High Torque Stepper Motor 20Nm NEMA 42 Stepping Motor With Drive
Kit For CNC Machine
The name Stepper Motor itself shows that the rotor movement is in
the form of various steps or discrete steps. It is also known as
Stepping Motor. The number of pulses fed into the controller
circuit determines the angular rotation of the motor. Each input
pulse produces one step of the angular movement. The drive is
considered as an analog to digital converter. It has an inbuilt
logic, which causes appropriate windings to be energised and
de-energized by the solid state switches in the required sequence.
1.Genaral Specification:
| Item | Specification |
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5%(full step,no load) |
| Resistance Accuracy | 0.97±10% |
| Inductance Accuracy | 17.5±20% |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Rated Voltage | 6.596V |
| Current | 6.8A /Phase |
| Weight | 11.7kg |
| Detent Torque: | 7.5kg.cm |
2.Electrical Specification of nema 42 stepper motor:

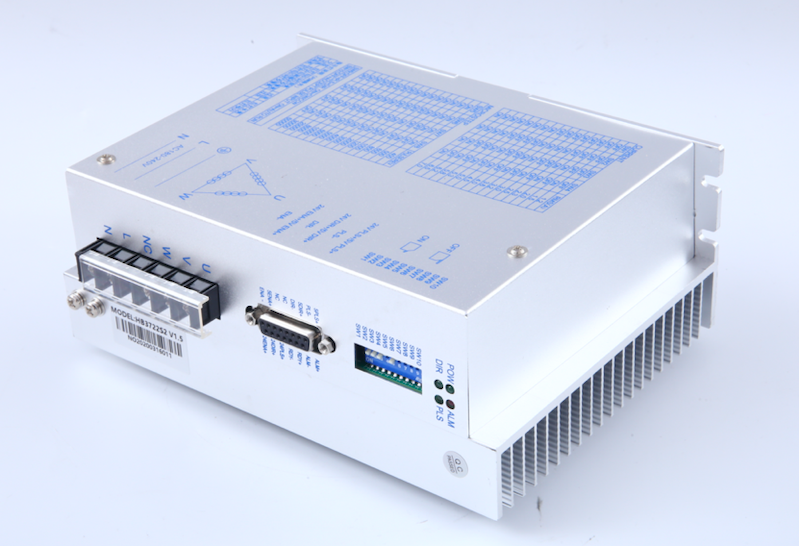

We are set motor and drive production as one of the manufacturers,
while providing motor, we also provide the corresponding model of
drive products, and have technical support.
3.Company introduction:
Founded in 2009, Changzhou Hejie Motors Co., Ltd. is a professional
manufacturer and exporter that is concerned
with the design, development and production and sales of motors. We
are located in Changzhou, Jiangsu Province, with convenient
transportation access.Our company has always been committed to the
design and manufacturing of the motors for over ten years , and now
has a number of invention patents and utility model patents. Our
company mainly engages in research and development of different
motors, including the series stepping motor, the series Brushless
DC motor, AC/DC servo motor. All of our products are greatly
appreciated in a variety of
different markets throughout the country, and even exports to more
than ten foreign countries and regions.
Our products have passed CE and ROHS certification, and the company
has passed ISO9001 total quality management system
certification.The products are widely applied to carved machine,
embroidery machine, industrial robots, robots, unmanned aerial
vehicle (uav), CNC machine tools, digital printing, computer flat
knitting machine, 3 d printing, packaging machinery, industrial
printers, medical equipment, new energy vehicles and other
automation control and automation system equipment.
Production equipment:
4.Related Qualification Certificate:
5.FAQ
Q1:Are you manufacturer ?
A1:Yes, we are the manufacturer of gear motor and planetary gearbox.
Q2 : What specifications we need before you place an order?
A2 : Rated torque, Rated speed, IP Grade, mounting dimensions.
Q3 : What is the price ?
A3 : Price always depends on quantity, we offer range pricing
Q4 : Is it customized ?
A4 : Yes, different clients have different requirements, so we customize for you. .
