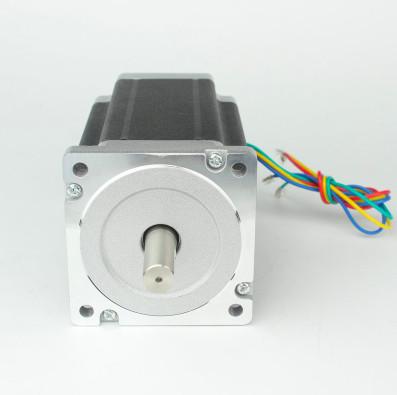

    Electric 2.8A-6A CNC Stepper Motor 86*86mm 86HS155-6004 Shaft Dia14mm

    Ask Lasest Price
    Brand Name : HEJIE
    Certification : CE,ISO9001,ROHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 pieces per month
    Delivery Time : For samples , 7-15 days / For batch , 15-25days
    • Product Details
    • Company Profile

    Electric 2.8A-6A CNC Stepper Motor 86*86mm 86HS155-6004 Shaft Dia14mm

    High Torque 12 Nm current 6A Nema 34 CNC Stepper Motor for CNC kit machine


    Changzhou Hejie Motors Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production and sales of motors. We are located in Changzhou, Jiangsu Province, with convenient transportation access.Our company has always been committed to the design and manufacturing of the motors for over ten years , and now has a number of invention patents and utility model patents. Our company mainly engages in research and development of different motors, including the series stepping motor, the series Brushless DC motor, AC/DC servo motor. All of our products are greatly appreciated in a variety of different markets throughout the country, and even exports to more than ten foreign countries and regions.


    1.Genaral Specification of high torque 12N.m nema34 stepper motor:

    (Item)(Specifications)
    (Step Angle)1.8°
    (Temperature Rise)80℃max
    (Ambient Temperature)-20℃~+50℃
    (Insulation Resistance)100 MΩ Min. ,500VDC
    (Dielectric Strength):820VAC for 1s 3mA
    (Shaft Radial Play)0.02Max. (450g-load)
    (Shaft Axial Play)0.08Max. (450g-load)
    (Max. radial force)220N (20mm from the flange)
    (Max. axial force)60N


    2.Electrical Specification of nema34 CNC stepper motor for CNC kit machine:


    Model No.


    Step Angle


    Motor Length


    Current

    /Phase


    Resistance

    /Phase


    Inductance

    /Phase


    Holding Torque


    # of Leads


    Detent Torque


    Rotor Inertia


    Mass

    ( °)(L)mmAΩmHN.mNo.Kg.cmg.cmKg
    HJ86HS68-59041.8675.90.281.73.440.810001.7
    HJ86HS68-28081.8672.81.43.93.480.810001.7
    HJ86HS78-55041.8785.50.464.04.641.214002.3
    HJ86HS78-42081.8784.20.753.44.681.214002.3
    HJ86HS97-45041.8974.50.663.05.841.721003.0
    HJ86HS97-40081.8974.00.984.14.781.721003.0
    HJ86HS100-60041.81006.00.362.87.041.922003.1
    HJ86HS115-60041.81156.00.66.58.742.427003.8
    HJ86HS115-42081.81154.20.96.08.782.427003.8
    HJ86HS126-60041.81266.00.586.56.342.932004.5
    HJ86HS155-60041.81556.00.689.013.043.640005.4
    HJ86HS155-42081.81554.21.258.012.283.640005.4


    Above only for representative products, products of special request can be made according to the customer request.



    3.Applications:
    This series air-cooled electric spindle motors are applicable to CNC engraving machines and used for high speed profiling, drilling, cutting, engraving and groove milling of wood, plastics, aluminum, rubber and other materials.


    4.Related Qualification Certificate:



    5.FAQ:

    Q1:Are you manufacturer ?

    A1:Yes, we are the manufacturer of gear motor and planetary gearbox.

    Q2 : What specifications we need before you place an order?

    A2 : Rated torque, Rated speed, IP Grade, mounting dimensions.

    Q3 : What is the price ?

    A3 : Price always depends on quantity, we offer range pricing

    Q4 : Is it customized ?

    A4 : Yes, different clients have different requirements, so we customize for you. .
