60mm 48V Brushless Dc Motor 3000RPM / High Power Bldc Motor For
Mechanical Arm
1. Descrition:
Rated Voltage : 36V-114V
Rated Speed : 1000RPM - 4000RPM
2. Genaral Specification of 48V brushless dc motor:
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm＠450g |
| End play | 0.08mm＠450g |
| Max.radial force | 115N ＠20mm form the flange |
| Max.axial force | 45N |
| Insulation class | Class B |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩ Min.,500VDC |
3. Electrical Specification of High power BLDC motor:
| | Model |
| Specification | Unit | HJ60BLS01 | HJ60BLS02 | HJ60BLS03 | HJ60BLS04 |
| Number Of Phase | Phase | 3 |
| Number Of Poles | Poles | 8 |
| Rated Voltage | VDC | 48 |
| Rated Speed | Rpm | 3000 |
| Rated Torque | N.m | 0.3 | 0.6 | 0.9 | 1.2 |
| Rated Current | Amps | 2.8 | 5.2 | 7.5 | 9.5 |
| Rated Power | W | 94 | 188 | 283 | 377 |
| Peak Torque | N.m | 0.9 | 1.8 | 2.7 | 3.6 |
| Peak Current | Amps | 8.4 | 15.6 | 22.5 | 28.5 |
| Back E.M.F | V/Krpm | 12.1 | 12.6 | 12.4 | 13.3 |
| Torque Constant | N.m/A | 0.116 | 0.12 | 0.118 | 0.127 |
| Rotor Inertia | Kg.c㎡ | 0.24 | 0.48 | 0.72 | 0.96 |
| Body Length | mm | 78 | 99 | 120 | 141 |
| Weight | Kg | 0.85 | 1.25 | 1.65 | 2.05 |
| Sensor | Honeywell |
| Insulation Class | B |
| Degree of Protection | IP30 |
| Storage Temperature | -25～+70℃ |
| Operating Temperature | -15～+50℃ |
| Working Humidity | 85% or under 85% RH(non condensing) |
| Working Environment | outdoor(no direct sunlight),Non-corrosive Gas,
Non-inflammable gas, No oil fog, No dust |
| Altitude | 1000m or under 1000m |
3.Company introduction:
Founded in 2009, Changzhou Hejie Motors Co., Ltd. is a professional
manufacturer and exporter that is concerned
with the design, development and production and sales of motors. We
are located in Changzhou, Jiangsu Province, with convenient
transportation access.Our company has always been committed to the
design and manufacturing of the motors for over ten years , and now
has a number of invention patents and utility model patents. Our
company mainly engages in research and development of different
motors, including the series stepping motor, the series Brushless
DC motor, AC/DC servo motor. All of our products are greatly
appreciated in a variety of different markets throughout the
country, and even exports to more than ten foreign countries and
regions.
Our products have passed CE and ROHS certification, and the company
has passed ISO9001 total quality management system
certification.The products are widely applied to carved machine,
embroidery machine, industrial robots, robots, unmanned aerial
vehicle (uav), CNC machine tools, digital printing, computer flat
knitting machine, 3 d printing, packaging machinery, industrial
printers, medical equipment, new energy vehicles and other
automation control and automation system equipment.
4.Related Qualification Certificate:
5.FAQ:
Q1:Are you manufacturer ?
A1:Yes, we are the manufacturer of gear motor and planetary gearbox.
Q2 : What specifications we need before you place an order?
A2 : Rated torque, Rated speed, IP Grade, mounting dimensions.
Q3 : What is the price ?
A3 : Price always depends on quantity, we offer range pricing

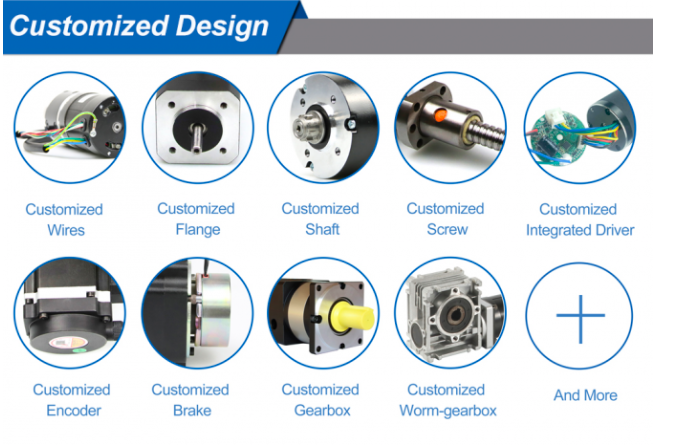

Q4 : Is it customized ?
A4 : Yes, different clients have different requirements, so we customize for you. .
