60mm 15W to 750W High Torque Electric BLDC Brushless DC Gear Motor
With Speed Controller
As different customers may need different motor parameter for
fitting your equipment. If below motor can't fit your need, please
kindly send inquiry to us with information for rated power or
torque,rated speed, and rated voltage for our new size drawing
making for you. Thanks a lot!
| Model | Voltage | Rated Speed | Rated Torque | Rated Current | Rated
Power | Peak Torque | Torque constant | Body length | Mass |
| VDC | Rpm | N.m | Amps | W | N.m | N.m/A | L:mm | Kg |
| 60BL80-430 | 24 | 3000 | 0.25 | 4.3 | 78 | 0.75 | 0.058 | 79 | 0.85 |
| 60BL100-430 | 24 | 3000 | 0.5 | 8.7 | 157 | 1.5 | 0.058 | 99 | 1.25 |
| 60BL120-430 | 24 | 3000 | 0.75 | 13 | 235 | 2.25 | 0.058 | 120 | 1.7 |
| 60BL140-430 | 48 | 3000 | 1 | 8.7 | 314 | 3 | 0.115 | 140 | 2.1 |
Dimensions (Unit: mm )
Mounting screws are included with gearhead
Principle of Brushless DC Motor:
The brushless DC motor includes the motor body and the drive, and
is a typical mechatronic product. The stator winding of the motor
body is mostly made into a three-phase symmetrical star (or delta)
connection. The magnetized permanent magnet is fixed on the rotor.
In order to detect the position of the motor rotor, the brushless
DC motor is equipped with a position sensor in the motor. The
driver is composed of power electronics and integrated circuits.
Its function is to accept the start, stop, and brake control
signals from the outside world to control the start, stop, and
brake of the motor; receive position sensor signals and forward and
reverse signals to control the start, stop and brake of the motor.
To control the on-off condition of the power tube to generate
continuous torque; accept speed commands and speed feedback signals
to control and adjust the speed; provide over-current, over-voltage
and under-voltage protection and display, etc.

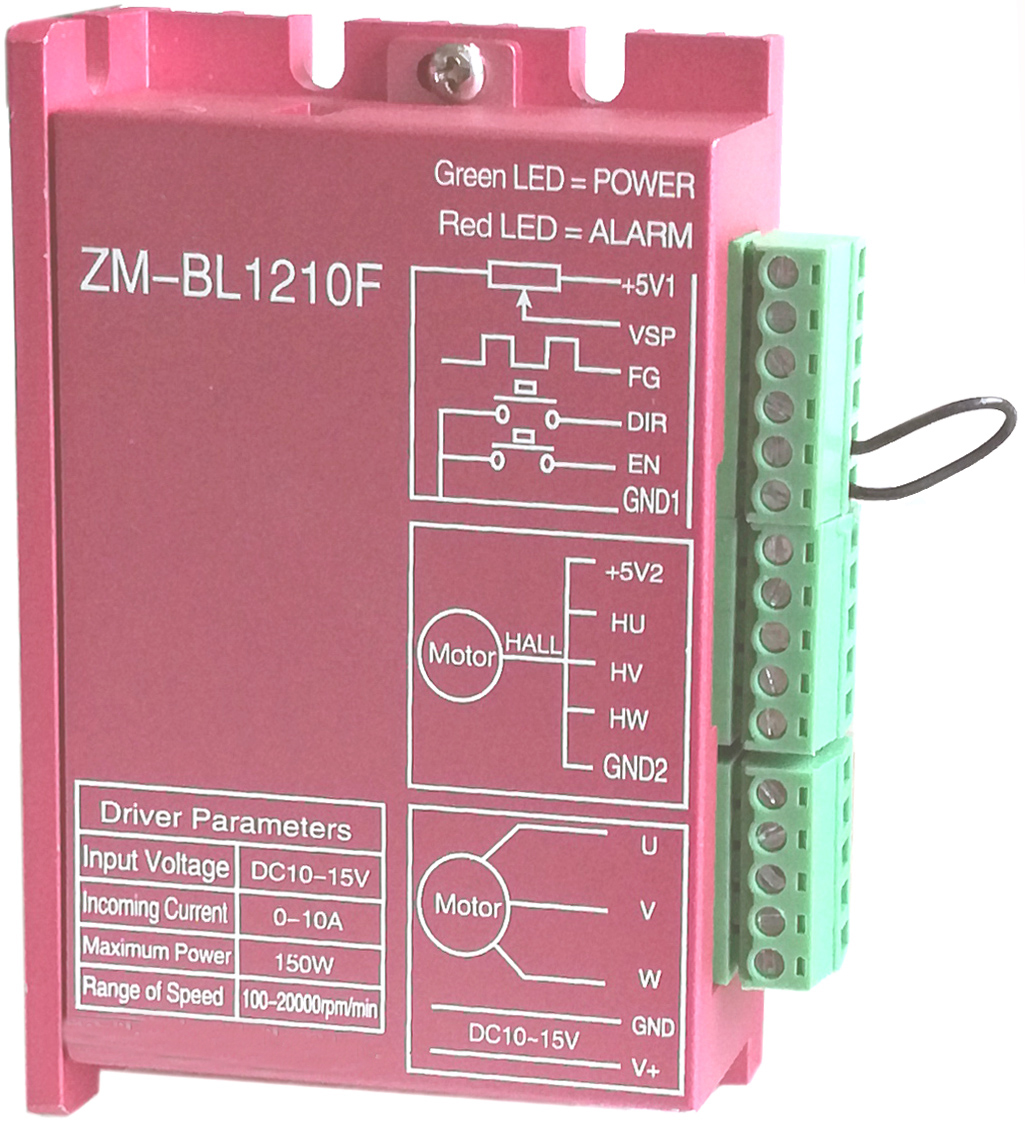

Motor drive:
We are set motor and drive production as one of the manufacturers,
while providing motor, we also provide the corresponding model of
drive products, and have technical support.
Company introduction:
Founded in 2009, Changzhou Hejie Motors Co., Ltd. is a professional
manufacturer and exporter that is concerned
with the design, development and production and sales of motors. We
are located in Changzhou, Jiangsu Province, with convenient
transportation access.Our company has always been committed to the
design and manufacturing of the motors for over ten years , and now
has a number of invention patents and utility model patents. Our
company mainly engages in research and development of different
motors, including the series stepping motor, the series Brushless
DC motor, AC/DC servo motor. All of our products are greatly
appreciated in a variety of
different markets throughout the country, and even exports to more
than ten foreign countries and regions.
Our products have passed CE and ROHS certification, and the company
has passed ISO9001 total quality management system
certification.The products are widely applied to carved machine,
embroidery machine, industrial robots, robots, unmanned aerial
vehicle (uav), CNC machine tools, digital printing, computer flat
knitting machine, 3 d printing, packaging machinery, industrial
printers, medical equipment, new energy vehicles and other
automation control and automation system equipment.
Production equipment:
Related Qualification Certificate:
FAQ:
Q1:Are you manufacturer ?
A1:Yes, we are the manufacturer of gear motor and planetary
gearbox.
Q2 : What specifications we need before you place an order?
A2 : Rated torque, Rated speed, IP Grade, mounting dimensions.
Q3 : What is the price ?
A3 : Price always depends on quantity, we offer range pricing
Q4 : Is it customized ?
A4 : Yes, different clients have different requirements, so we
customize for you. .
