3 Phase 48VDC DC Electric Motor IP30 Brushless DC Fan Motor

Ask Lasest Price
Brand Name :	HEJIE
Certification :	CE,ISO9001
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 pieces per day
Delivery Time :	For samples , 7-15 days / For batch , 15-25days

Add to Cart

Product Details
Company Profile

3 Phase 48VDC DC Electric Motor IP30 Brushless DC Fan Motor

Brushless DC fan motor 3 - Phase High Rpm Brushless Dc Electric Motor For Automation Equipment
1. Application of brushless dc motor

(Stepper motor, electrical motor,brake motor,motor driver,gear motor,bldc motor,brushless motor)

Textile machinery, engraving machine
Security, 4g antenna, solar energy
Medical equipment, industrial automation
Automobile, office automation
Printing equipment, advertising equipment etc.

Electrical Specification of brushless dc fan motor:

2.42BLS SERIES high speed brushless dc motor

		Model
Specification	Unit	HJ42BLS01	HJ42BLS02	HJ42BLS03	HJ42BLS04
Number Of Phase	Phase	3
Number Of Poles	Poles	8
Rated Voltage	VDC	24
Rated Speed	Rpm	4000
Rated Torque	N.m	0.0625	0.125	0.185	0.25
Rated Current	Amps	1.8	3.3	4.8	6.3
Rated Power	W	26	52.5	77.5	105
Peak Torque	N.m	0.19	0.38	0.56	0.75
Peak Current	Amps	5.4	10.6	15.5	20
Back E.M.F	V/Krpm	4.1	4.2	4.3	4.3
Torque Constant	N.m/A	0.039	0.04	0.041	0.041
Rotor Inertia	g.c㎡	24	48	72	96
Body Length	mm	41	61	81	100
Weight	Kg	0.3	0.45	0.65	0.8
Sensor	Honeywell
Insulation Class	B
Degree of Protection	IP30
Storage Temperature	-25～+70℃
Operating Temperature	-15～+50℃
Working Humidity	85% or under 85% RH(non condensing)
Working Environment	outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust
Altitude	1000m or under 1000m

3.57BLS SERIES of high rpm brushless dc electric motor

		Model
Specification	Unit	HJ57BLS005	HJ57BLS01	HJ57BLS02	HJ57BLS03	HJ57BLS04
Number Of Phase	Phase	3
Number Of Poles	Poles	4
Rated Voltage	VDC	36
Rated Speed	Rpm	4000
Rated Torque	N.m	0.055	0.11	0.22	0.33	0.44
Rated Current	Amps	1.2	2	3.6	5.3	6.8
Rated Power	W	23	46	92	138	184
Peak Torque	N.m	0.16	0.33	0.66	1	1.32
Peak Current	Amps	3.5	6.8	11.5	15.5	20.5
Torque Constant	N.m/A	0.074	0.073	0.07	0.07	0.068
Rotor Inertia	g.cm	30	75	119	173	230
Body Length	mm	37	47	67	87	107
Weight	Kg	0.33	0.44	0.75	1	1.25
Sensor	Honeywell
Insulation Class	B
Degree of Protection	IP30
Storage Temperature	-25~+70℃
Operating Temperature	-15~+50℃
Working Humidity	85% or under 85% RH(non condensing)
Working Environment	outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust
Altitude	1000m or under 1000m

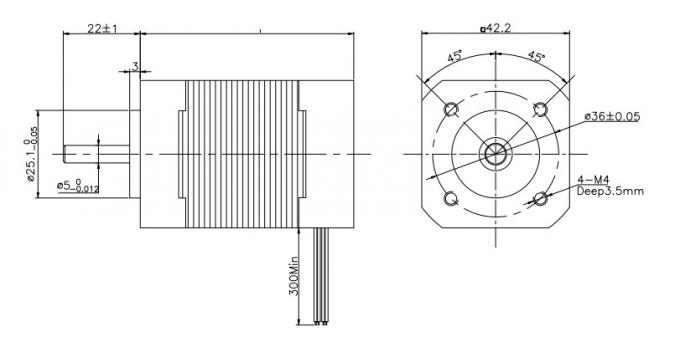

Dimensions of 3 phase brushless dc motor : (Unit=mm)

4. 42BLS SERIES of automation equipment
