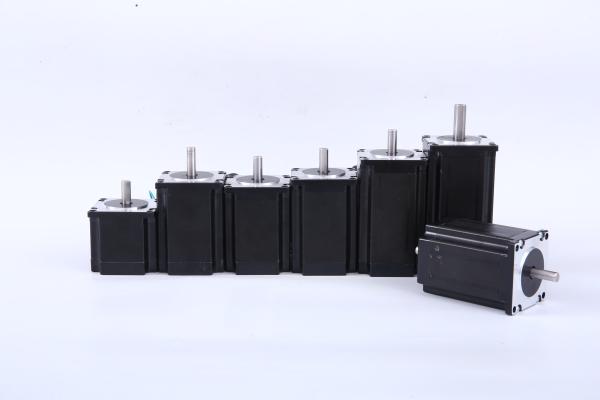

Nema 24 2.5a-3.0a-4.2a 1.8 Degree 0.85nm-3.6nm Hybrid Stepper Motor
60bygh Series
1. Feartures & Benifits of nema23 stepper motor:NEMA23 frame size
High step accuracy and resolution
Low vibration and noise
Can be customized for winding current, shaft options and cables and
connectors.
CE certified and ROHS compliant
Genaral Specification of hybrid step motor:
Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g
Load)
End Play ------------------------------------ 0.08mm MAX. (450g
Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N
2. Specifications:
| 60BYGH 2PHASE STEPPER MOTOR |
| MODEL | STEP ANGLE | BODY LENGTH | CURRENT | RESISTANCE | INDUCTANCE | HOLDING TORQUE | POSITIONING TORQUE | MOMENT INERTIA | LEAD NO. | WEIGHT |
| | (.) | L(MM) | (A) | (Ω) | (mH) | (NM) | (NCM) | (GCM2) | | (KG) |
| 60BYGH45-2504 | 1.8 | 45 | 2.5 | 1 | 2.2 | 0.85 | 3 | 200 | 4 | 0.55 |
| 60BYGH56-2504 | 1.8 | 56 | 2.5 | 1.3 | 4.2 | 1.6 | 4 | 350 | 4 | 0.7 |
| 60BYGH56-4204 | 1.8 | 56 | 4.2 | 0.4 | 1.2 | 1.6 | 4 | 350 | 4 | 0.7 |
| 60BYGH65-3004 | 1.8 | 65 | 3 | 0.8 | 2.3 | 1.8 | 5 | 450 | 4 | 0.85 |
| 60BYGH65-4204 | 1.8 | 65 | 4.2 | 0.55 | 1.2 | 1.8 | 5 | 450 | 4 | 0.85 |
| 60BYGH76-2504 | 1.8 | 76 | 2.5 | 1.8 | 6.5 | 2.2 | 7 | 550 | 4 | 1.15 |
| 60BYGH76-3004 | 1.8 | 76 | 3 | 1 | 3.5 | 2.2 | 7 | 550 | 4 | 1.15 |
| 60BYGH76-4204 | 1.8 | 76 | 4.2 | 0.6 | 1.8 | 2.2 | 7 | 550 | 4 | 1.15 |
| 60BYGH89-3004 | 1.8 | 89 | 3 | 1.4 | 5.5 | 2.6 | 12 | 780 | 4 | 1.4 |
| 60BYGH89-4204 | 1.8 | 89 | 4.2 | 0.7 | 2.8 | 2.6 | 12 | 780 | 4 | 1.4 |
| 60BYGH100-4204 | 1.8 | 100 | 4.2 | 0.7 | 3 | 3 | 16 | 900 | 4 | 1.6 |
| 60BYGH112-4204 | 1.8 | 112 | 4.2 | 0.85 | 3.5 | 3.6 | 16 | 900 | 4 | 1.8 |
3. Applications of hybrid stepper motor:
As the stepper motor are digitally controlled using an input pulse,
they are suitable for use with computer controlled systems.- They are used in numeric control of machine tools.
- Used in tape drives, floppy disc drives, printers and electric
watches.
- The stepper motor also use in X-Y plotter and robotics.
- It has wide application in textile industries and integrated
circuit fabrications.
- The other applications of the Stepper Motor are in spacecrafts
launched for scientific explorations of the planets etc.
- These motors also find a variety of commercial, medical and
military applications and also used in the production of science
fiction movies.
- Stepper motors of microwatts are used in the wrist watches.
- In the machine tool, the stepper motors with ratings of several
tens of kilowatts is used.
