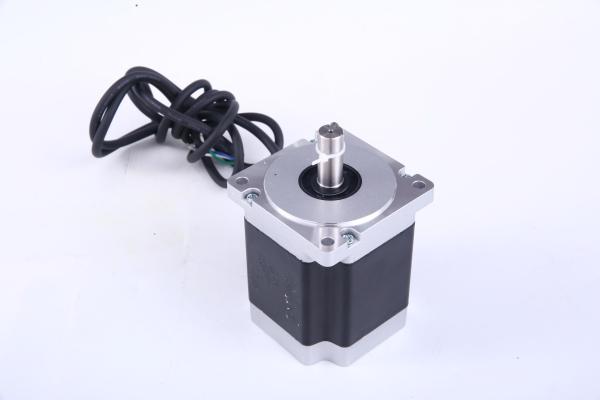

1.8 Degree NEMA34 Stepper Motor 150MM Body Length Rated Current
4.2A Rated Torque 12NM For CNC Machine
1.Product Description:
Stepping motor is an open-loop control element that converts
electrical pulse signals into angular displacement or linear
displacement. In the case of non-overload, the motor speed and stop
position only depend on the frequency and pulse number of the pulse
signal, and are not affected by the load change. When the stepper
driver receives a pulse signal, it drives the stepper motor The set
direction rotates at a fixed angle, called "step angle", and its
rotation runs step by step at a fixed angle.
2.Specifications
| 86BYGH 2 PHASE STEPPER MOTOR |
| MODEL | STEP ANGLE | BODY LENGTH | CURRENT | RESISTANCE | INDUCTANCE | HOLDING TORQUE | POSITIONING TORQUE | MOMENT INERTIA | LEAD NO. | WEIGHT |
| | (.) | L(MM) | (A) | (Ω) | (mH) | (NM) | (NCM) | (GCM2) | | (KG) |
| 86BYGH150-4208 | 1.8 | 150 | 4.2 | 1.5 | 8.6 | 12 | 24.5 | 4000 | 8 | 5 |
| 86BYGH150-6004 | 1.8 | 150 | 6 | 0.75 | 8.6 | 12 | 24.5 | 4000 | 4 | 5 |
86 BYGH
SERIES MOTOR.pdf
3.Applications of hybrid stepper motor:
In the field of lasers and optics they are frequently used in precision positioning equipment such
as linear
actuators, linear
stages, rotation
stages, goniometers, and mirror
mounts. Other uses are in packaging machinery, and positioning of valve pilot stages for fluid control systems.
4.Company introduction:
Founded in 2009, Changzhou Hejie Motors Co., Ltd. is a professional
manufacturer and exporter that is concerned with the design,
development and production and sales of motors. We are located in
Changzhou, Jiangsu Province, with convenient transportation
access.Our company has always been committed to the design and
manufacturing of the motors for over ten years , and now has a
number of invention patents and utility model patents. Our company
mainly engages in research and development of different motors,
including the series stepping motor, the series Brushless DC motor,
AC/DC servo motor. All of our products are greatly appreciated in a
variety of different markets throughout the country, and even
exports to more than ten foreign countries and regions.
Production equipment:
5.Related Qualification Certificate:
6.FAQ
Q1:Are you manufacturer ?
A1:Yes, we are the manufacturer of gear motor and planetary gearbox.
Q2 : What specifications we need before you place an order?
A2 : Rated torque, Rated speed, IP Grade, mounting dimensions.
Q3 : What is the price ?
A3 : Price always depends on quantity, we offer range pricing
Q4 : Is it customized ?
A4 : Yes, different clients have different requirements, so we customize for you. .
